Shepard v1.1 MLX Pins Bent 90 Degrees
images/Shepard_v1.1_MLX_Pins_Bent_90_Degrees.jpg

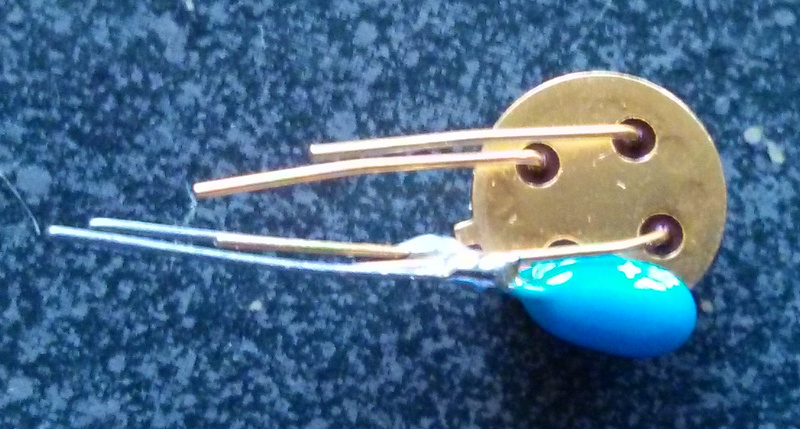

The pins were bent 90 degrees so that the sensor could be placed on the underside of the motor mount tube, between it and the linear guide rail.
