Documents / images / Shepard v1.1 Fixing Temperature Sensor In Position

Created: 2013-07-17 14:04:49 by Jeremy Wright

Title: Shepard v1.1 Fixing Temperature Sensor In Position

File: images/Shepard_v1.1_Fixing_Temperature_Sensor_In_Position.jpg

Description:

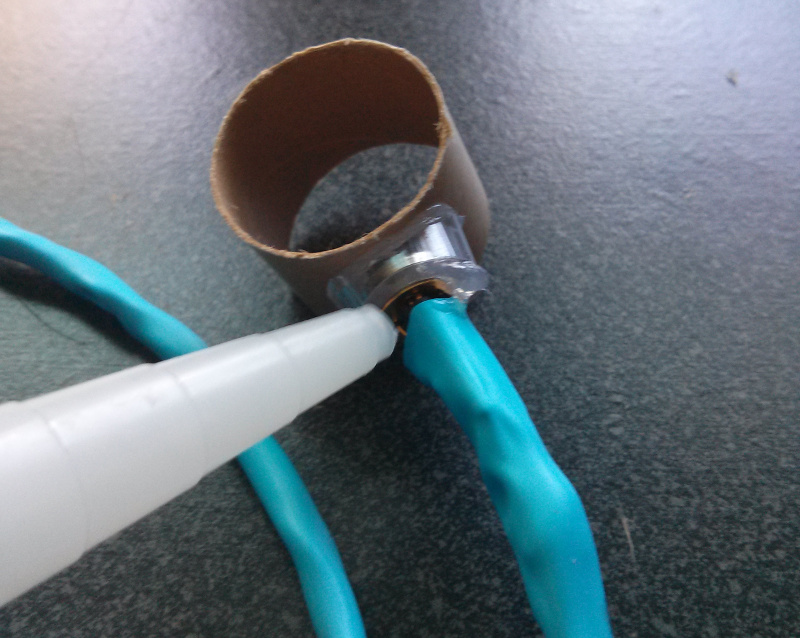

Using clear silicon to fix the MLX90614 temperature sensor in place in the temperature probe mount.

Version: 0.1

Workflow: None

Mime: image/jpeg

Size: 184.1 kB

Comment:
