MLX90614 Circuit With Thrust Sensing Circuit IRL Small
images/MLX90614_Circuit_With_Thrust_Sensing_Circuit_IRL_Small.png

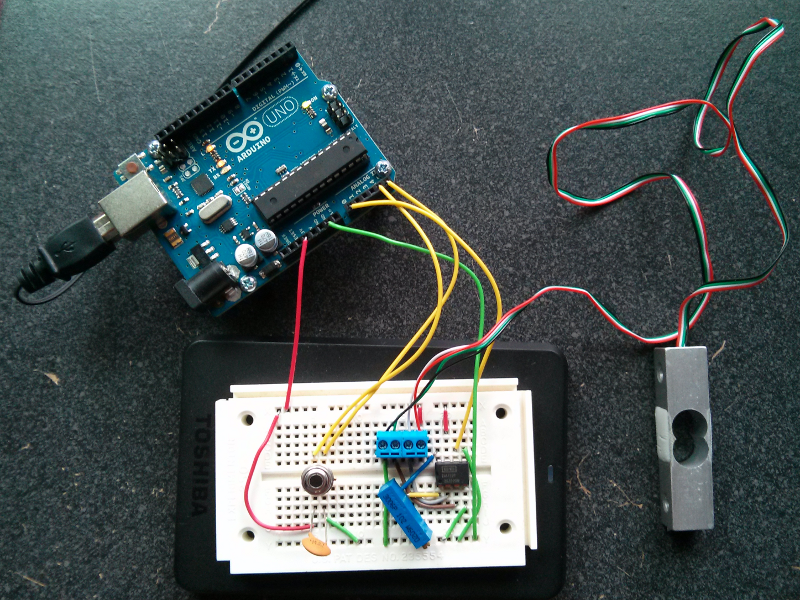

Photo of the Shepard v1.1 DAQ circuit breadboarded using the MLX90614 non-contact sensor. The pic also shows the thrust DAQ circuitry and how everything is connected to the Arduino. This is the small version of the image.
