Shepard v1.1 DAQ Non-Contact Temperature bb Small
images/Shepard_v1.1_DAQ_Non-Contact_Temperature_bb_Small.png

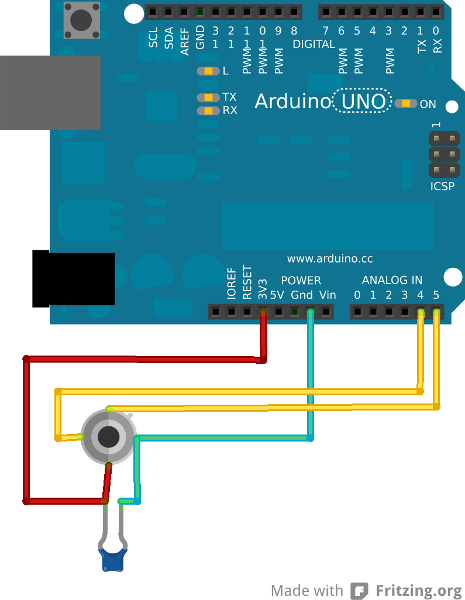

An experimental circuit done with the MLX90614 non-contact infra-red temperature sensor. This is the small version of the Fritzing diagram.
