Aaron Suggested Load Cell Mounting Small
images/Aaron_Suggested_Load_Cell_Mounting_Small.png

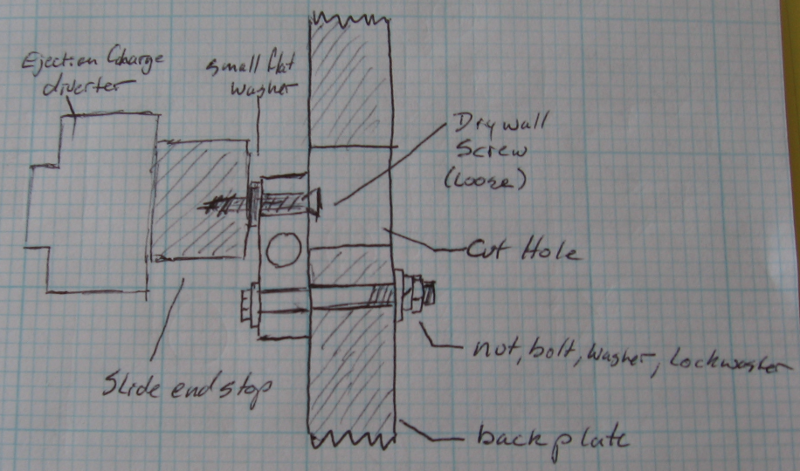

A new load cell mounting configuration suggested and sketched by Aaron Harper to attach the load cell to the Shepard 1.1 structure. This is a small version of the image.
0.1
None
image/png
502.2 kB
