Documents / images / Shepard v1.1 DAQ Temperature Schematic

Created: 2013-05-21 23:09:28 by Jeremy Wright

Title: Shepard v1.1 DAQ Temperature Schematic

File: images/Shepard_v1.1_DAQ_Temperature_schem.png

Description:

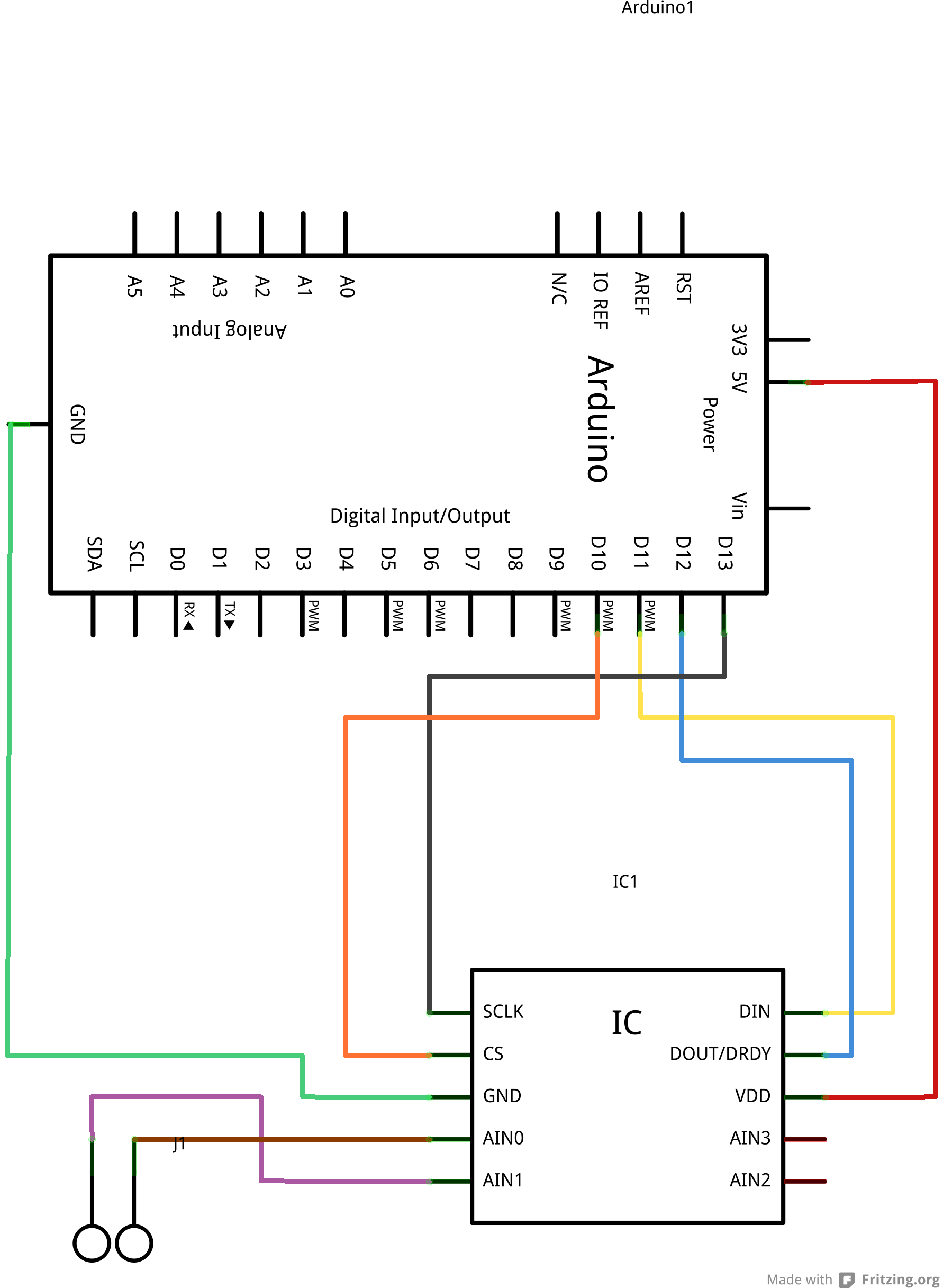

Large size of the Fritzing generated schematic for the ADS1118 temperature sensing circuit.
