Shepard v1.1 DAQ Load Cell Desktop Test Small
images/Shepard_v1.1_DAQ_Load_Cell_Desktop_Test_Small.png

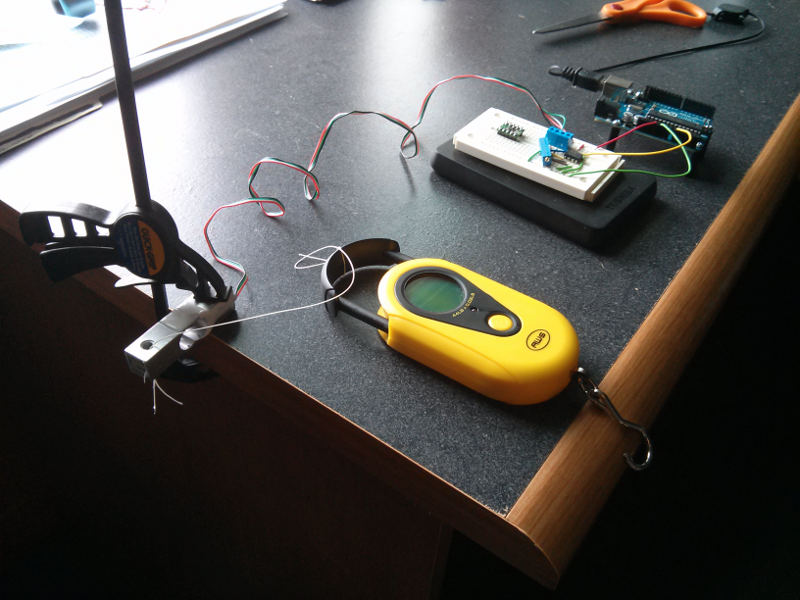

A failed setup to try to set the gain of the load cell circuit by clamping the load cell to a desktop and hanging weight from it. Small version.
