Shepard v1.1 MLX Finished Expanded Headers
images/Shepard_v1.1_MLX_Finished_Expanded_Headers.jpg

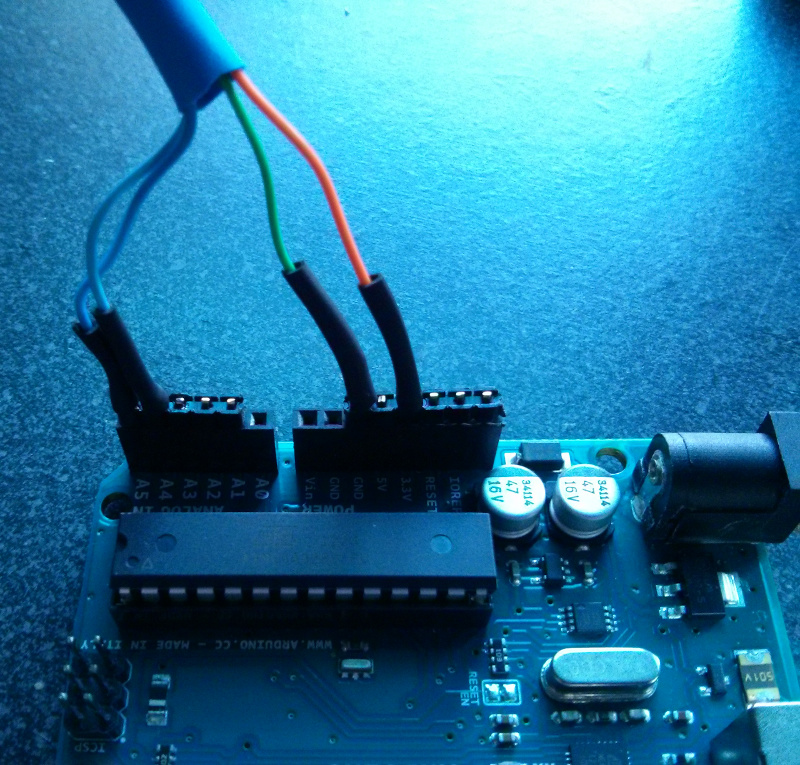

Expanded header pins were used to create a more stable connection for the MLX90614 sensor with the Arduino. This image shows the pins inserted into their header sockets.
