Documents / images / Shepard v1.1 Capacitor Free Formed To IR Sensor

Created: 2013-06-24 10:22:50 by Jeremy Wright

Title: Shepard v1.1 Capacitor Free Formed To IR Sensor

File: images/Shepard_v1.1_Capacitor_Free_Formed_To_IR_Sensor.jpg

Description:

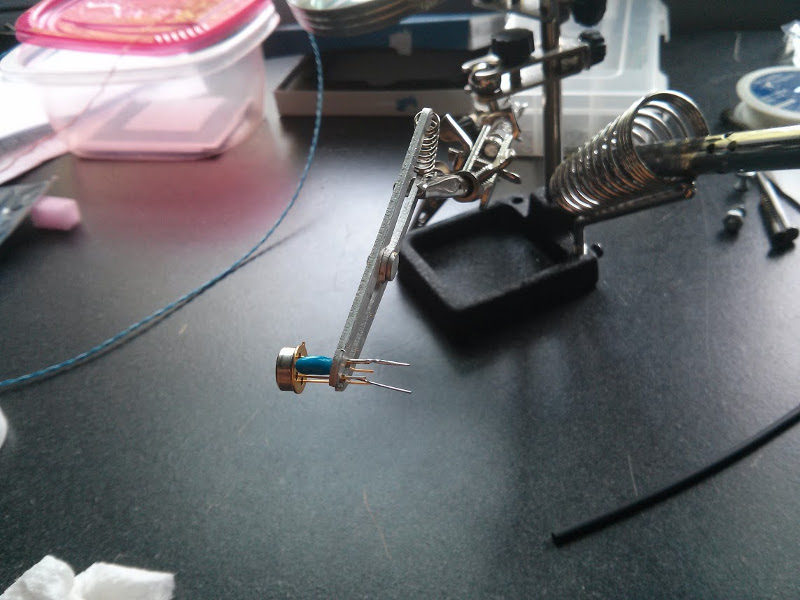

The setup for free form soldering the 0.1 uF capacitor to the MLX60914 IR sensor pins.

Version: 0.1

Workflow: None

Mime: image/jpeg

Size: 98.1 kB

Comment:
