Documents / images / Shepard 2.0 simplified frame 16

Created: 2013-06-20 10:49:32 by Aaron Harper

Title: Shepard 2.0 simplified frame 16

File: images/IMG_0016.JPG

Description:

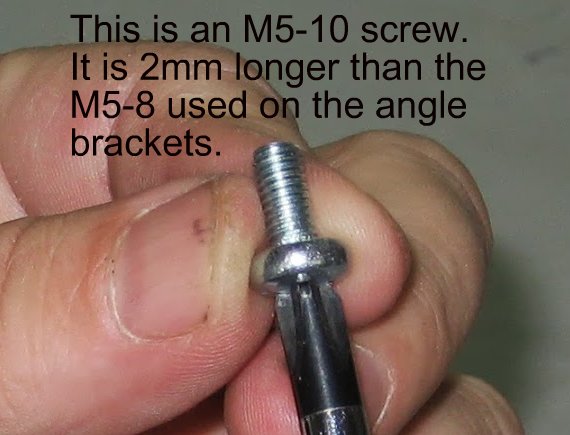

Shepard 2.0 simplified frame. M5-10 screw detail.

Version: 1.0

Workflow: None

Mime: image/jpeg

Size: 43.2 kB

Comment: Prototype used to make all steel and aluminum Shepard 2.0. Note: Design does not scale.
