Documents / images / Shepard 2.0 simplified motor mount mockup- Front Right Quarter

Created: 2013-06-17 16:50:17 by Aaron Harper

Title: Shepard 2.0 simplified motor mount mockup- Front Right Quarter

File: images/9_FrontRightQuarter_scaled.JPG

Description:

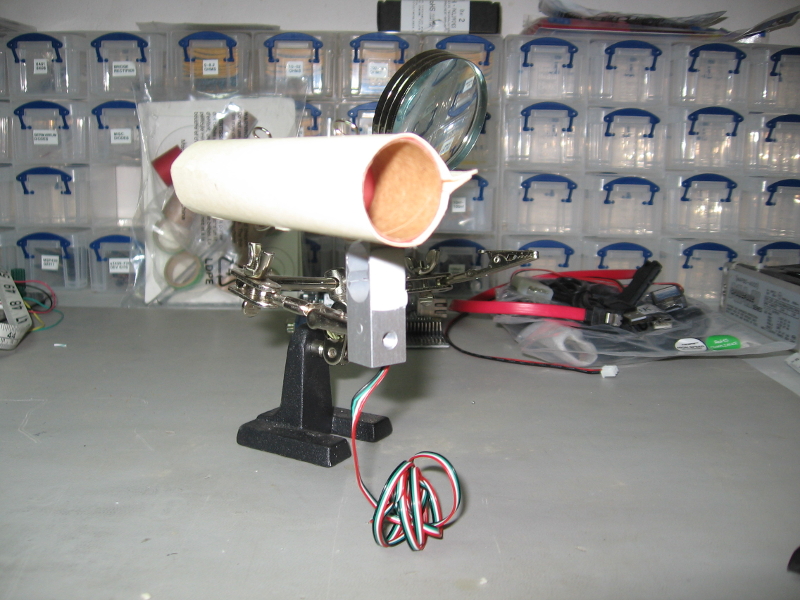

Shepard 2.0 simplified motor mount mockup- Front right view

Version: 1.0

Workflow: None

Mime: image/jpeg

Size: 393.6 kB

Comment: Prototype used to make all steel and aluminum Shepard 2.0. Note: Design does not scale.
