Shepard 2.0 simplified motor mount mockup- Attachment plan
images/2_Attach_scaled.JPG

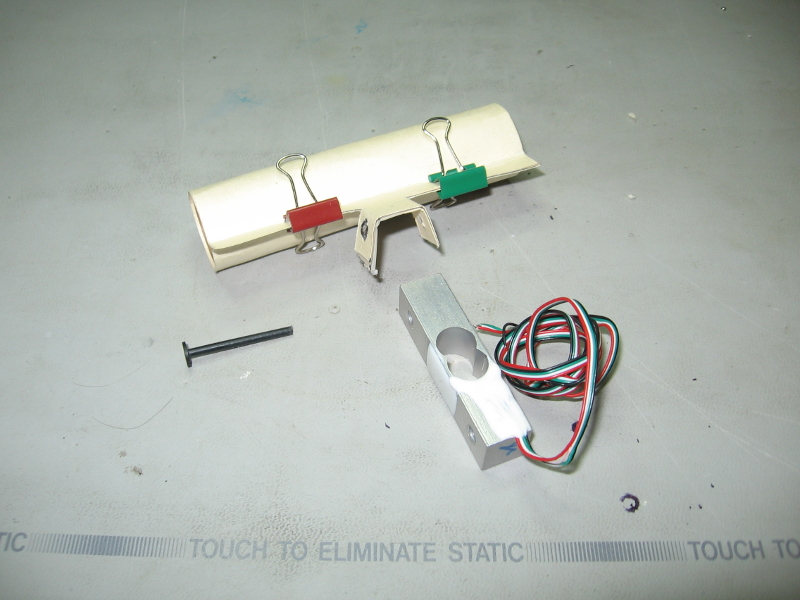

Shepard 2.0 simplified motor mount mockup- Attachment detail
Small binder clips simulate edge crimp in steel. Green clip is aft.
Plastic pin simulates M5-14 machine screw and nut used to secure the mount to the load cell.
1.0
None
image/jpeg
350.5 kB
Prototype used to make all steel and aluminum Shepard 2.0. Note: Design does not scale.
