Documents / images / Shepard 2.0 simplified motor mount mockup- Bend sheet

Created: 2013-06-17 16:50:16 by Aaron Harper

Title: Shepard 2.0 simplified motor mount mockup- Bend sheet

File: images/1_Bends_scaled.JPG

Description:

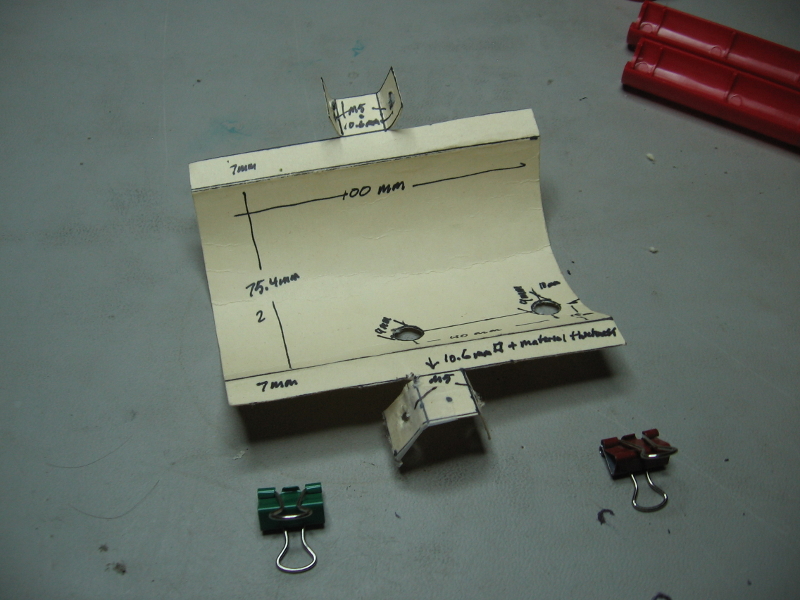

Bends required to make Shepard 2.0 motor mount out of 18ga - 20ga steel.

Version: 1.0

Workflow: None

Mime: image/jpeg

Size: 351.6 kB

Comment: Prototype used to make all steel and aluminum Shepard 2.0. Note: Design does not scale.
