Shepard 2.0 simplified motor mount mockup- Drill and cut sheet
images/0_Shape_scaled.JPG

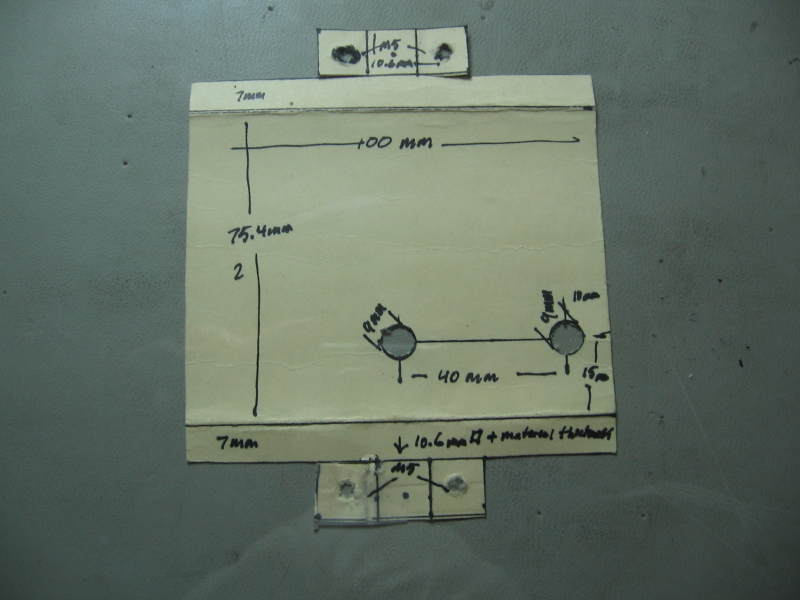

Shape required to make Shepard 2.0 motor mount out of 18ga - 20ga steel.
1.0
None
image/jpeg
363.7 kB
Prototype used to make all steel and aluminum Shepard 2.0. Note: Design does not scale.
