Documents / images / Shepard v1.1 Resistor Network For Gain

Created: 2013-06-11 07:21:18 by Jeremy Wright

Title: Shepard v1.1 Resistor Network For Gain

File: images/Shepard_v1.1_Resistor_Network_For_Gain.jpg

Description:

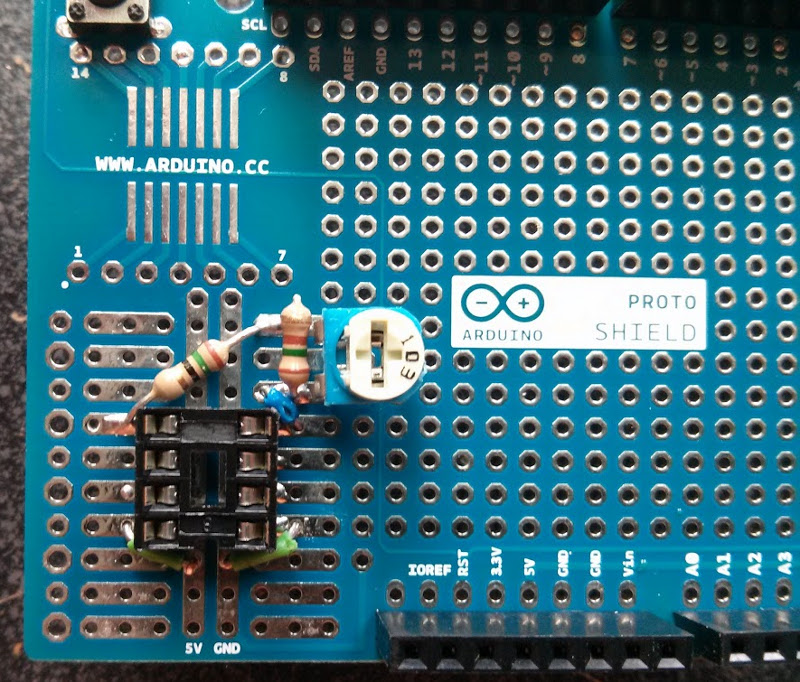

Adding the resistor network that sets the gain on the INA122.
