Documents / images / Shepard v1.1 Three M5 Flat Washers Between BP and End Stop

Created: 2013-06-04 07:19:32 by Jeremy Wright

Title: Shepard v1.1 Three M5 Flat Washers Between BP and End Stop

File: images/Shepard_v1.1_Three_M5_Flat_Washers_Between_BP_and_End_Stop.jpg

Description:

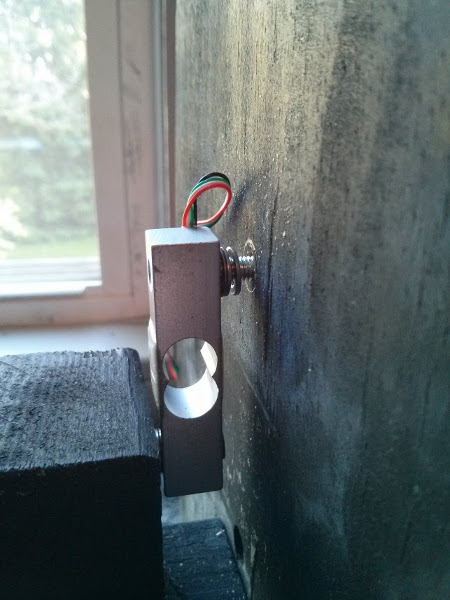

Three flat washers between back plate and motor mount end stop block.

Version: 0.1

Workflow: None

Mime: image/jpeg

Size: 64.1 kB

Comment:
