Shepard v1.1 Drilling Pilot Hole For Load Cell
images/Shepard_v1.1_Drilling_Pilot_Hole_For_Load_Cell.jpg

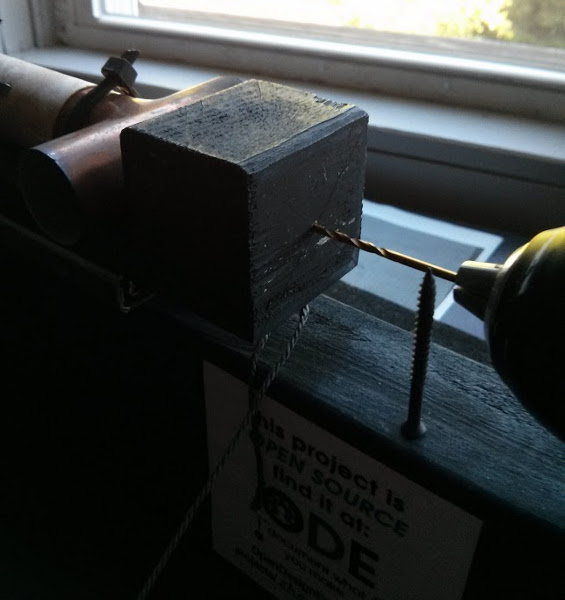

Drilling the 5/64 pilot hole to mount the load cell to the motor mount end stop block.
